AMGO BP-9X Base Plate Car Lift | 9,000 lb Extra Tall

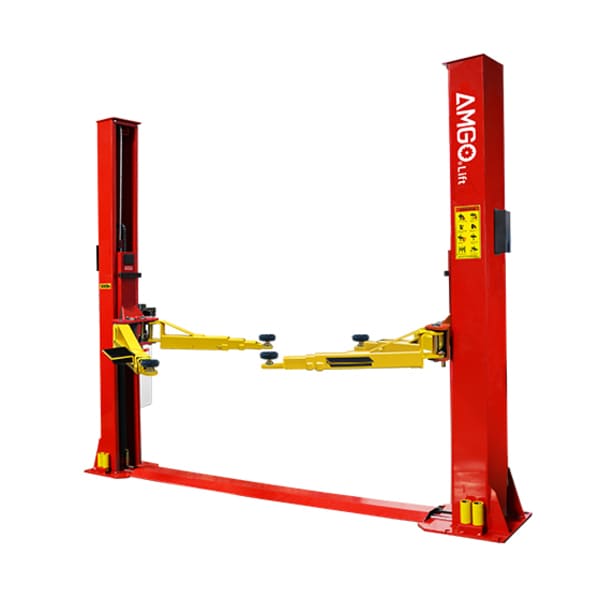

AMGO BP-9X Base Plate Car Lift – Extra Tall

The AMGO BP-9X is an upgraded version of the popular BP-9, engineered with a wider, taller, and more robust structure to accommodate a greater range of vehicles. With a 9,000 lb lifting capacity and base plate design, it’s perfect for garages and workshops with ceiling heights over 9.5 ft. Whether for commercial use or serious home garage setups, the BP-9X delivers reinforced reliability and safe, easy operation.

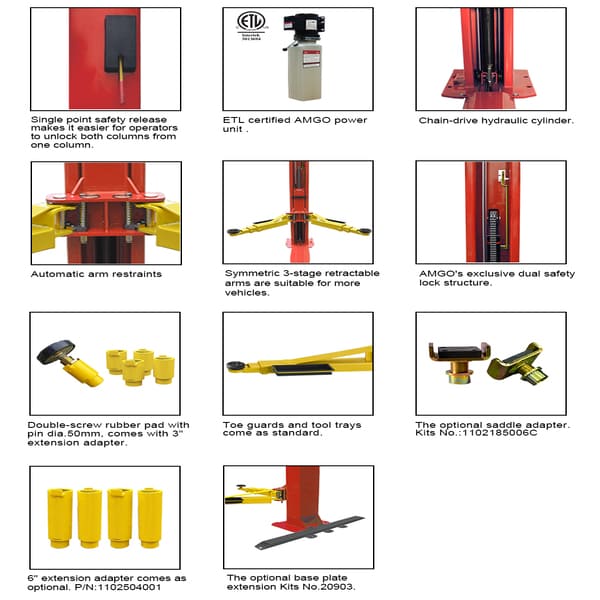

Extra Tall Two Post Lift Features – AMGO BP-9X Overview

• 9,000 lb lifting capacity

• Enhanced commercial-grade structure for extra height and width

• Ideal for shops and home garages with 9.5 ft or higher ceilings

• Symmetric four 3-stage retractable arms fit more vehicle types

• Automatic arm restraints for safety and convenience

• Single-point manual safety lock release unlocks both posts at once

• Dual-safety lock structure for added security

• Self-lubricating UHMW polyethylene sliders ensure smooth operation

• Aero sync cables included for balanced lifting

• Detachable toe guards and built-in tool tray

• Double-screw rubber pads with 3” extension adapters (½” pin diameter)

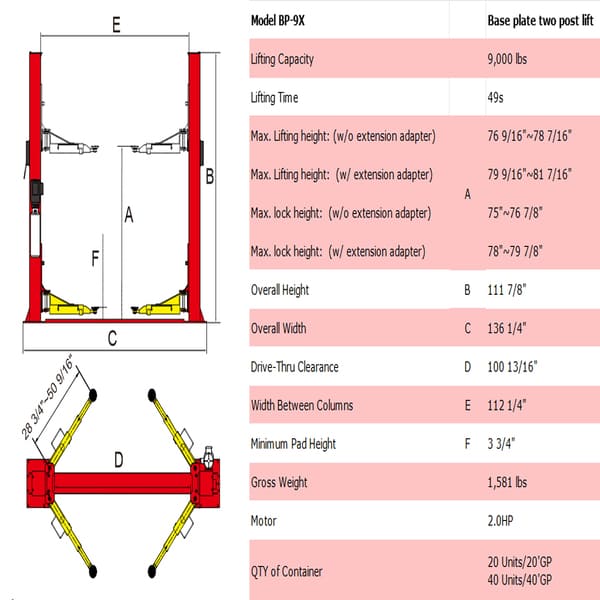

AMGO BP-9X 9000 lb Lift Specifications

• Lift Type: Two-post, base plate

• Lifting Capacity: 9,000 lbs

• Arm Type: Symmetric 3-stage retractable arms

• Ceiling Height Requirement: Minimum 9.5 ft

• Locking System: Dual-safety locks with single-point manual release

• Extras: Tool tray, detachable toe guard, Aero sync cables

• Pad Style: Double-screw rubber pads with 3" adapters

BP-9X Auto Lift Installation Manual

Download AMGO BP-9X Installation Manual (PDF)
