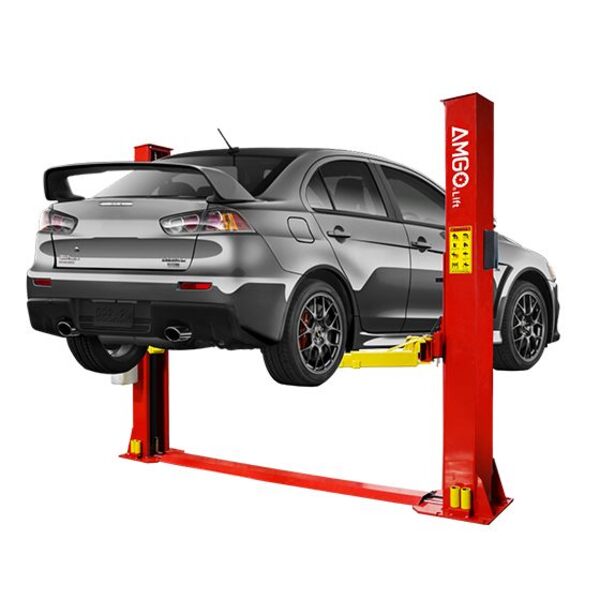

AMGO BP-9 Base Plate Car Lift | 9,000 lb Auto Lift

AMGO BP-9 Base Plate Car Lift – Safe & Space-Smart Lifting

The AMGO BP-9 is a reliable and space-efficient base plate car lift engineered to deliver safety, convenience, and versatility in shops or home garages with low ceilings (9 feet or higher). With a 9,000 lb lifting capacity and symmetric 3-stage arms, it’s the ideal solution for working on a variety of vehicles. Featuring a dual-safety lock system, single-point manual lock release, and durable construction, the BP-9 is built for secure, smooth operation every time.

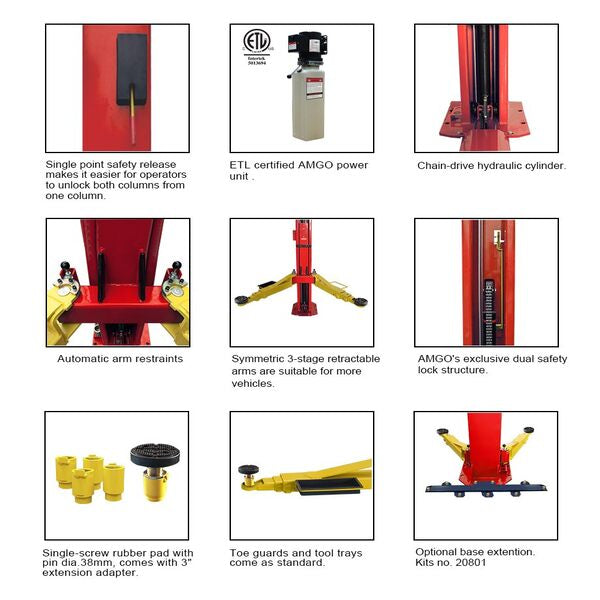

Two Post Vehicle Lift Features – AMGO BP-9 Highlights

• 9,000 lb lifting capacity

• Symmetric four 3-stage retractable arms accommodate more vehicle types

• Automatic arm restraints for secure lifting

• Single-point manual safety lock release operates both columns

• Dual-safety lock structure for added protection

• Self-lubricating UHMW polyethylene sliders for smooth movement

• Aero sync cables included

• Detachable toe guards and tool tray for operator convenience

• Single-screw rubber pads with 3” extension adapters (pin diameter: ½″)

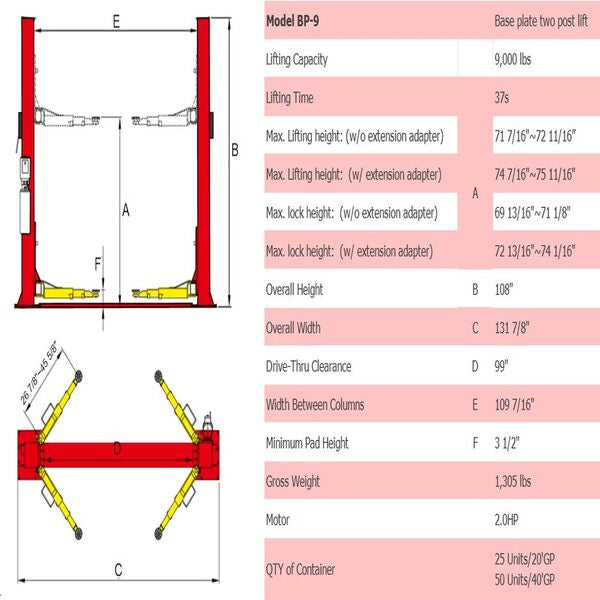

AMGO BP-9 9000 lb Lift Specifications

• Lift Type: Two-post, base plate

• Lifting Capacity: 9,000 lbs

• Arm Style: Symmetric 3-stage retractable arms

• Safety System: Dual safety locks, single-point manual release

• Minimum Ceiling Height: 9 ft

• Pads: Rubber pad with 3” extension

• Extras: Toe guard, tool tray, UHMW sliders, Aero sync cables

BP-9 Two Post Auto Lift Installation Manual

Download AMGO BP-9 Installation Manual (PDF)
