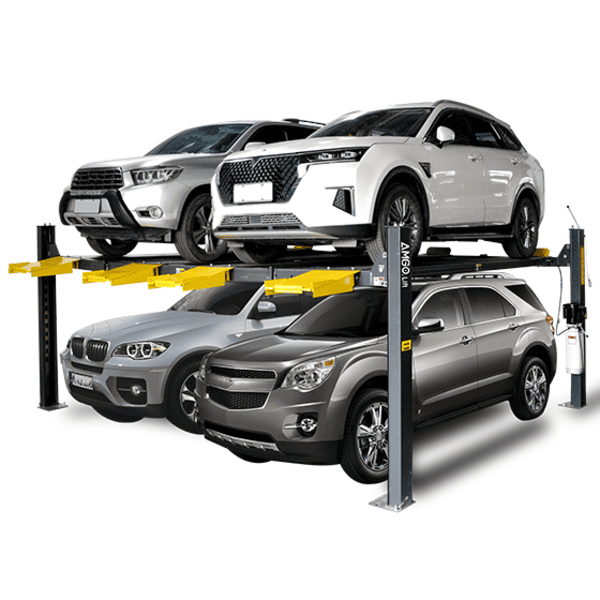

AMGO 409-DPX High-Clearance Car Lift for SUVs & Trucks

AMGO 409-DPX Double Car Stack Lift for Tall Vehicles

The AMGO 409-DPX is the extended and taller version of the 409-DP, designed to handle longer and higher vehicles like SUVs, light trucks, and vans. With a 9,000 lb lifting capacity and enhanced vertical clearance, it offers more flexible parking solutions for both commercial and residential applications. Its low-profile design, diamond-plated platforms, and foldable drive-on ramps make it easy to use, while AMGO’s patented safety mechanisms ensure secure operation. Ideal for those who need to park larger vehicles underneath with confidence.

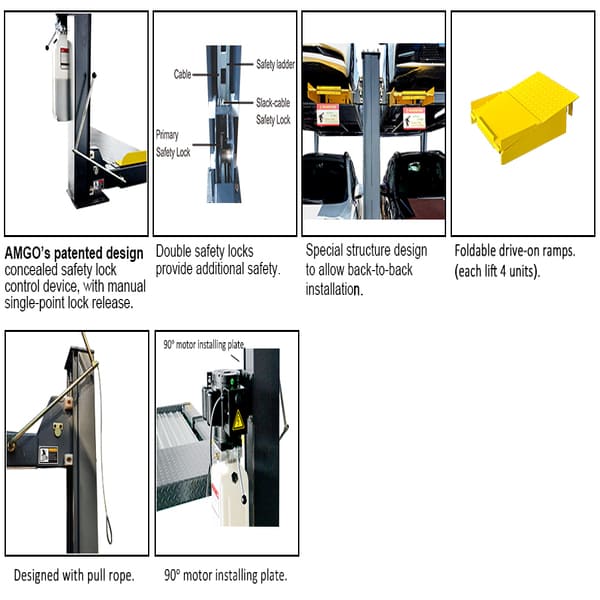

9,000 lb Double Parking Lift Features

• Lifting capacity: 9,000 lbs, max single car weight: 6,000 lbs

• Max lifting height: 87 11/16″

• Minimum platform height: Only 6 1/8″

• Primary safety lock and cable-slack protection as standard

• AMGO patented concealed safety lock control with single-point manual release

• Foldable drive-on ramps (4 units included)

• Compact design reduces transport and storage cost

• Double-formed columns for increased structural strength

• Non-slip diamond platforms

• Adjustable multi-position safety ladders

• Standard pull rope included

• Operates with 110V power unit (lifting time: 120 seconds)

AMGO 409-DPX Four-Post Lift Specifications

• Model: AMGO 409-DPX

• Lift Type: Double Parking / Four Post

• Power Requirement: 110V

• Lift Time: Approx. 120 seconds

• Platform Type: Diamond Plate, Non-slip

• Safety Mechanism: Dual locks with slack-cable detection

• Material Strength: Double-formed steel columns

• Installation: Floor-mounted, low profile

• Weight Capacity: 9,000 lbs total (6,000 lbs max per vehicle)

AMGO High-Clearance Parking Lift Manual

Download the 409-DPX Installation Manual (PDF)
