AMGO 409-DP 4-Car Parking Lift | 9,000lb Capacity

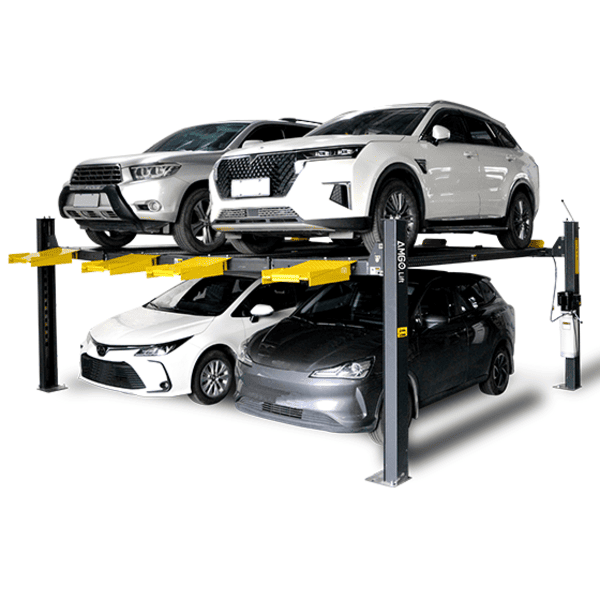

AMGO 409-DP Double Car Parking Lift for 4 Vehicles

The AMGO 409-DP is a compact, high-capacity double-deck parking lift designed to maximize vertical parking space. With a total lifting capacity of 9,000lbs (and 6,000lbs per vehicle), this space-saving solution is ideal for residential garages, commercial buildings, and fleet storage. Featuring patented concealed safety controls, dual locking systems, and adjustable platforms, the 409-DP offers both strength and simplicity. It allows two cars to be stacked on each side, accommodating up to four vehicles in total—all with minimal maintenance and easy operation.

4-Car Double Car Parking Lift Features

• Total lifting capacity: 9,000 lbs (Single vehicle max: 6,000 lbs)

• Max platform height: 73 11/16"

• Low-profile design: Minimum platform height at only 6 1/8"

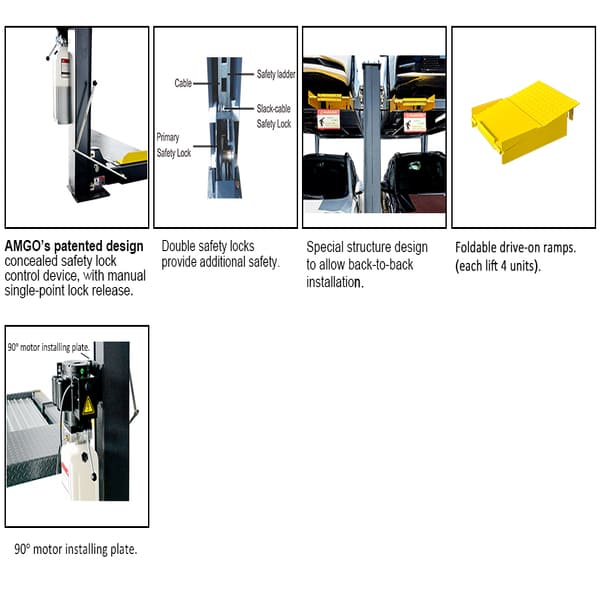

• Dual safety system: Includes primary lock and cable-slack protection

• AMGO patented concealed safety lock system with manual single-point release

• Foldable drive-on ramps – exclusive 4-unit design

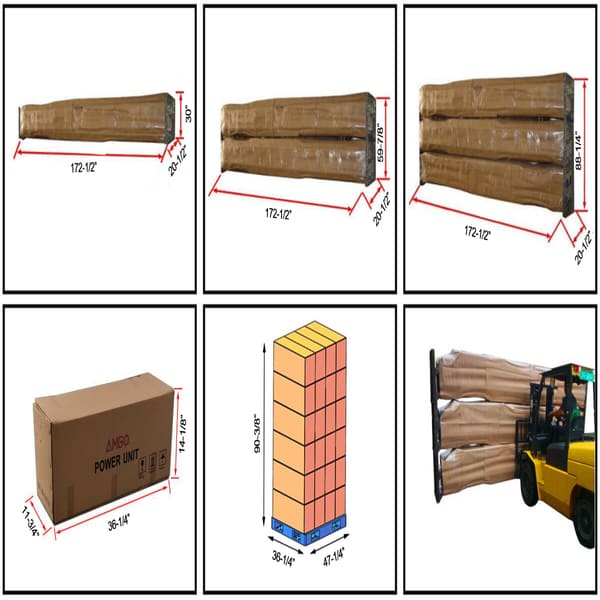

• Compact shipping – smart packaging reduces freight and storage costs

• Double-ᴇ shaped columns for enhanced strength

• Diamond plate platforms for anti-slip safety

• Adjustable multi-point safety ladders

• 110V power unit included (Lifting time approx. 100 seconds)

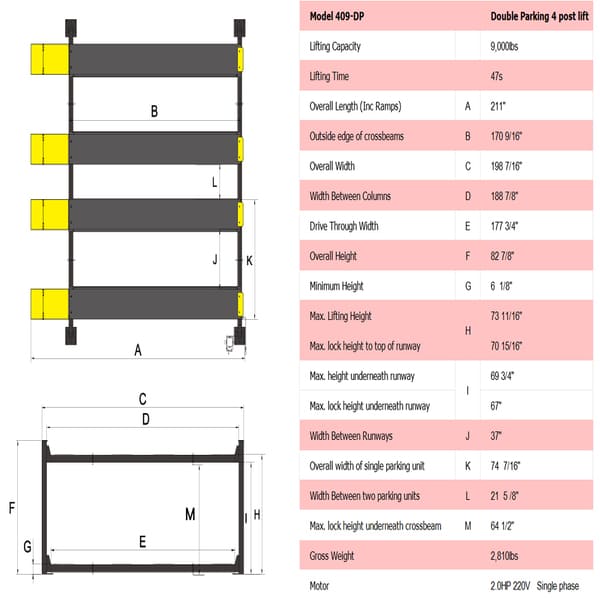

AMGO 409-DP Vehicle Lift Specifications

• Model: 409-DP

• Lifting Capacity: 9,000 lbs

• Max Vehicle Weight (per car): 6,000 lbs

• Lifting Height: 73 11/16”

• Minimum Platform Height: 6 1/8”

• Power Requirement: 110V

• Installation Type: Surface-mount, no anchoring required

• Usage: Residential & Commercial

• Number of Parking Positions: 4 vehicles (2 upper, 2 lower)

• Platform Surface: Non-slip diamond plate

409-DP Space-Saving Car Stacker Manual

Download the AMGO 409-DP Installation Manual (PDF)
