Home > AMGO > AMGO PRO-14A Alignment Lift 4 Post | 14,000 lb Capacity

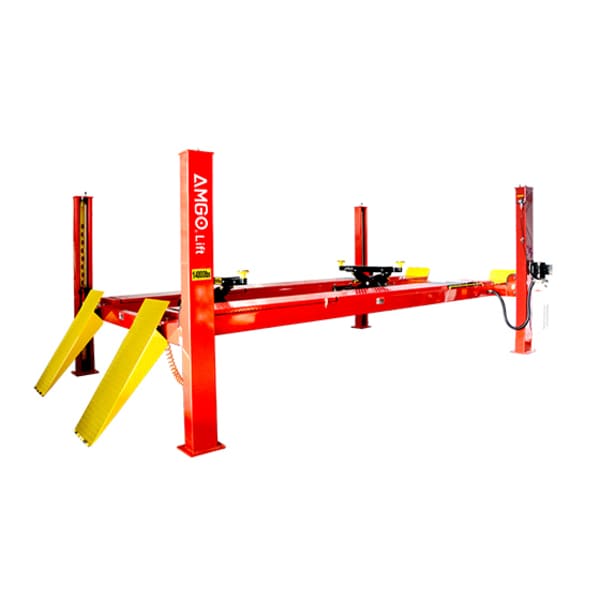

AMGO PRO-14A Alignment Lift 4 Post | 14,000 lb Capacity full product view

AMGO PRO-14A Alignment Lift 4 Post | 14,000 lb Capacity

AMGO  | Authorized Dealer  |  SKU: PRO-14A

$8,720.00 - $8,720.00
$8,720.00
$8,720.00 - $8,720.00
$8,720.00
+ FREE SHIPPING

0% APR financing available with Affirm — up to 12 months on purchases under $2,000, up to 24 months over $2,000. Subject to credit approval. See financing details

Availability:
Only 10 left!
Get Expert Pricing Call a Specialist — (866) 412-1837

Talk to a real specialist about pricing, freight and lead time. Mon–Fri, 9AM–6PM EST. We reply to quote requests within 24 hours on business days.

Authorized
AMGO Dealer
Free
Shipping
Price Match
Guarantee
Full Mfr
Warranty
5.0 out of 5 — read 4 verified reviews

Shipping & delivery on this item

  • Leaves the warehouse in 3–5 business days. You get a tracking number by email within 24 hours of dispatch.
  • Then 5–10 business days in transit. Times vary by distance and weight.
  • Ships from a US warehouse. Carriers are UPS, USPS or FedEx, or a freight carrier on large items.
  • This is a freight item. The carrier calls you to book a delivery appointment before it arrives. Delivery is curbside — plan to have help or equipment to move it, and note that installation is not included.
  • Inspect it before you sign. If anything is damaged in transit, email support@innovdepot.com the same day with photos (we usually need 3–5) and we replace it.
  • We cannot deliver to a PO Box.

Need it by a certain date, or not ready for delivery yet? Call (866) 412-1837 — in most cases we can hold the item and start processing later. Full shipping policy

Want today's AMGO prices but not ready for delivery?

No problem! All orders receive special attention and in most cases we can hold items and begin processing at a later date! Please contact us for more details!

🚚 Delivery Options

Delivery — Call for Quote
✅ Free Warehouse Pickup

Shipping cost varies by delivery location and product size. Call us for an accurate delivery quote.
Free warehouse pickup is available — call (866) 412-1837 to arrange pickup from the nearest AMGO warehouse location.

Need a custom delivery quote? Call (866) 412-1837 or email support@innovdepot.com

🏪
Authorized AMGO Dealer
🛡️
Full Manufacturer Warranty
📦
Ships in 3-5 Business Days
📞
U.S.-Based Support: (866) 412-1837

AMGO PRO-14A Four Post Alignment Lift – 14,000 lb Capacity

Take your shop's wheel alignment capabilities to the next level with the AMGO PRO-14A Four Post Alignment Lift. Designed for commercial use, the PRO-14A delivers all the robust performance of the PRO-14 model, but includes integrated slip plates and adjustable turnplate pockets for efficient and accurate alignment services. With a 14,000 lb lifting capacity, extended runways, and stepless width adjustment, it easily handles a wide range of vehicles—from sedans and SUVs to long-wheelbase trucks and vans.

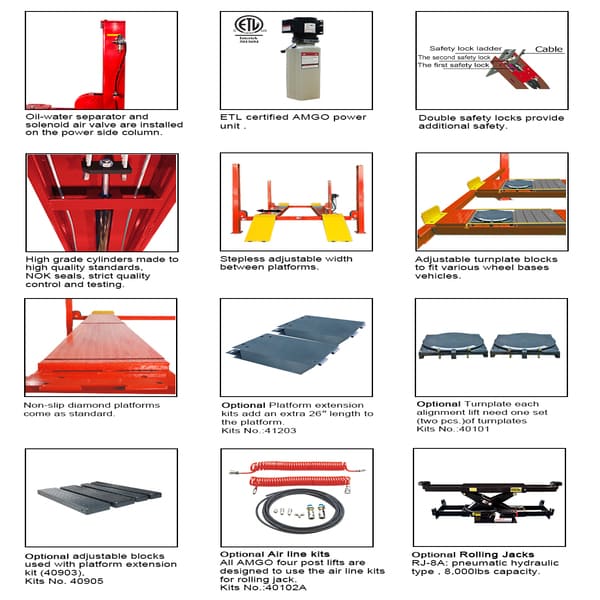

PRO-14A Alignment Lift Features

  • 14,000 lbs lifting capacity

  • AMGO ETL-certified power unit included

  • Mechanical self-locking safety device with air lock release

  • Primary safety locks and cable-slack protection system

  • Aircraft-grade high-strength cables

  • Hydraulic cylinder with high-quality seals and compensation valve

  • Non-skid diamond plate runways

  • Stepless adjustable width between platforms

  • Built-in slip plates and adjustable turnplate pockets for alignment

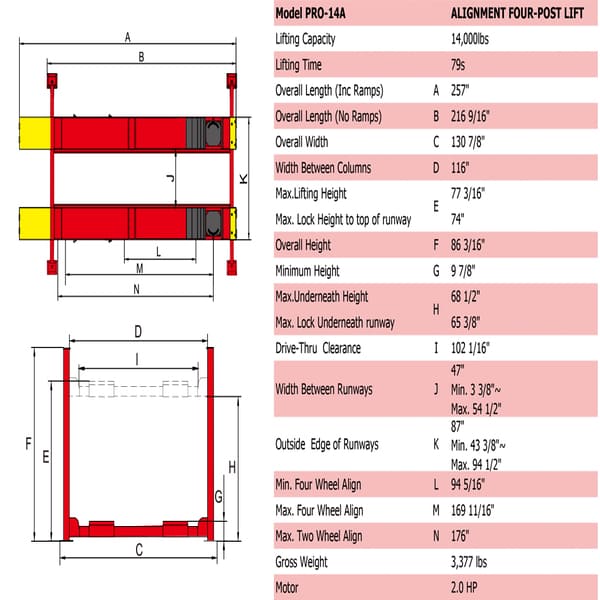

AMGO PRO-14A 4 Post Lift Specifications

  • Lift Capacity: 14,000 lbs

  • Overall Length (including ramps): [Insert Measurement]

  • Runway Length: [Insert Measurement]

  • Overall Width: [Insert Measurement]

  • Lifting Height: [Insert Measurement]

  • Power Requirements: [Insert Specs, e.g., 220V, Single Phase]

AMGO Wheel Alignment Lift Manual

Download the AMGO PRO-14A Installation Manual (PDF)


Specifications

Lift type4-Post
Weight capacity14000 lbs
Max lifting height97 in
Model / SKUPRO-14A
BrandAMGO
