Accucold 24" Wide Refrigerator-Freezer - CT66W

Accucold 24" Wide Refrigerator-Freezer - CT66W

Accucold by Summit Appliance offers a wide range of counter height refrigeration for general purpose storage. The CT66J Series includes freestanding refrigerator-freezers equipped with dual evaporator cooling for optimum storage conditions.

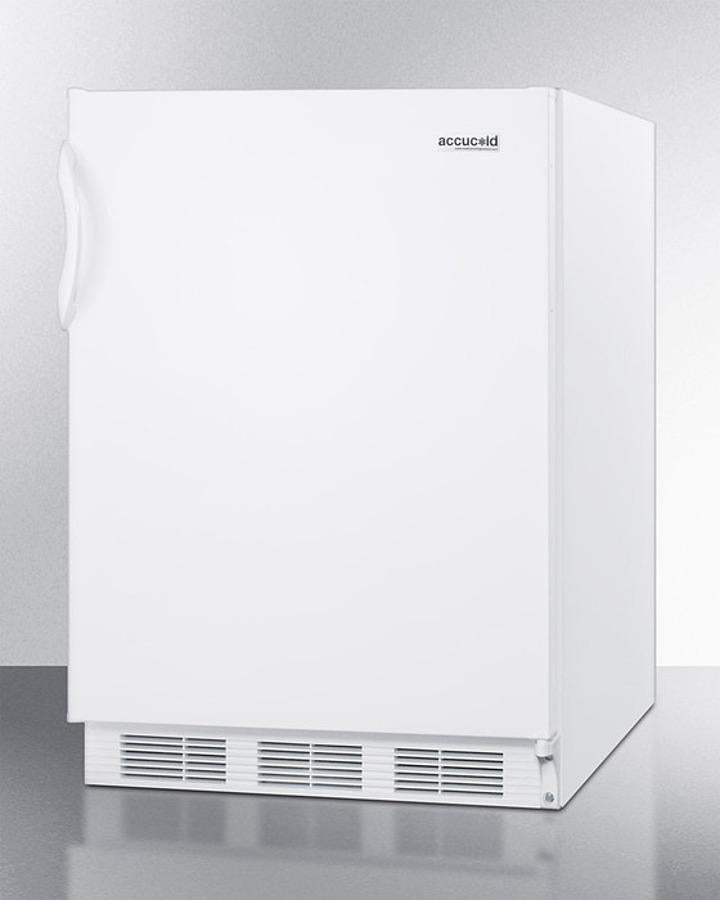

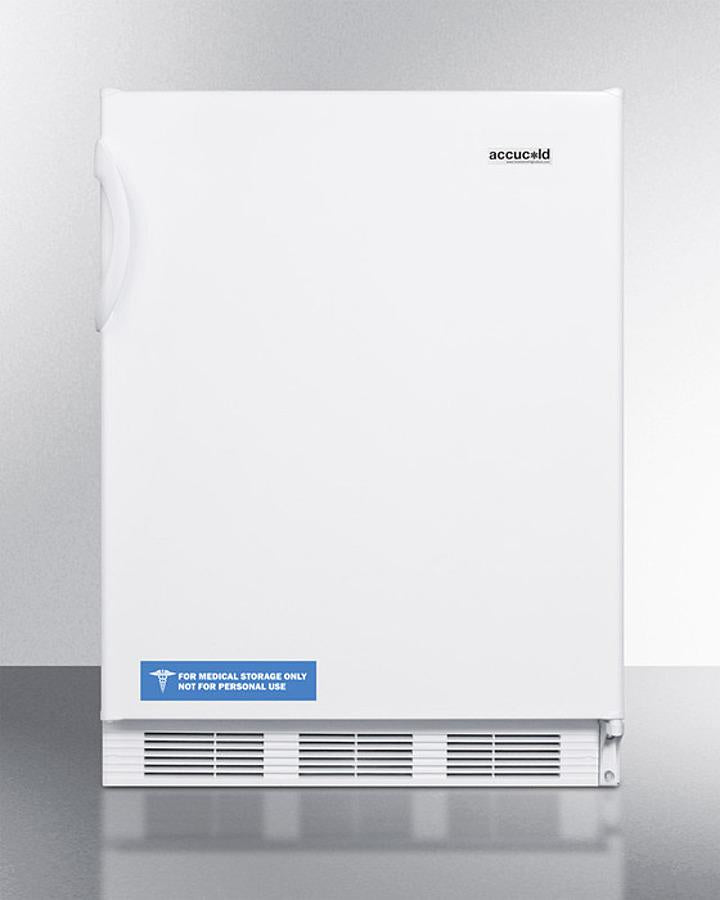

Sized with a 24" footprint, the CT66W offers over 5 cu.ft. of storage capacity. This counter height model is designed for freestanding use. It features a white exterior finish and a user-reversible door swing.

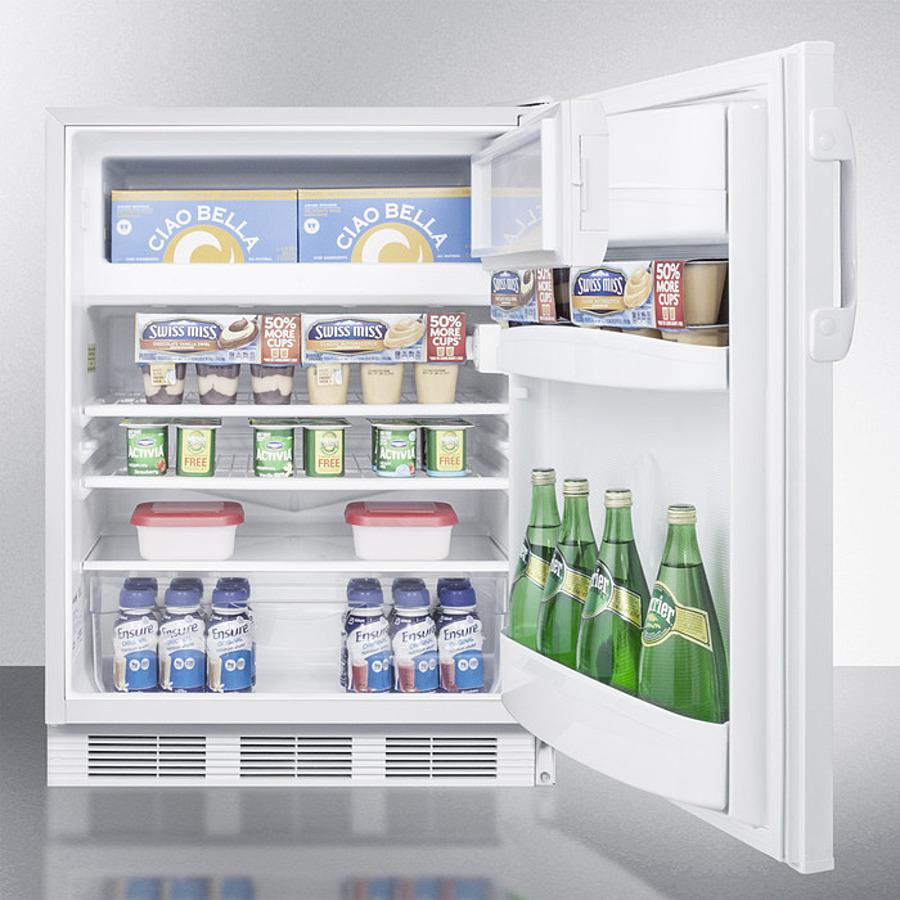

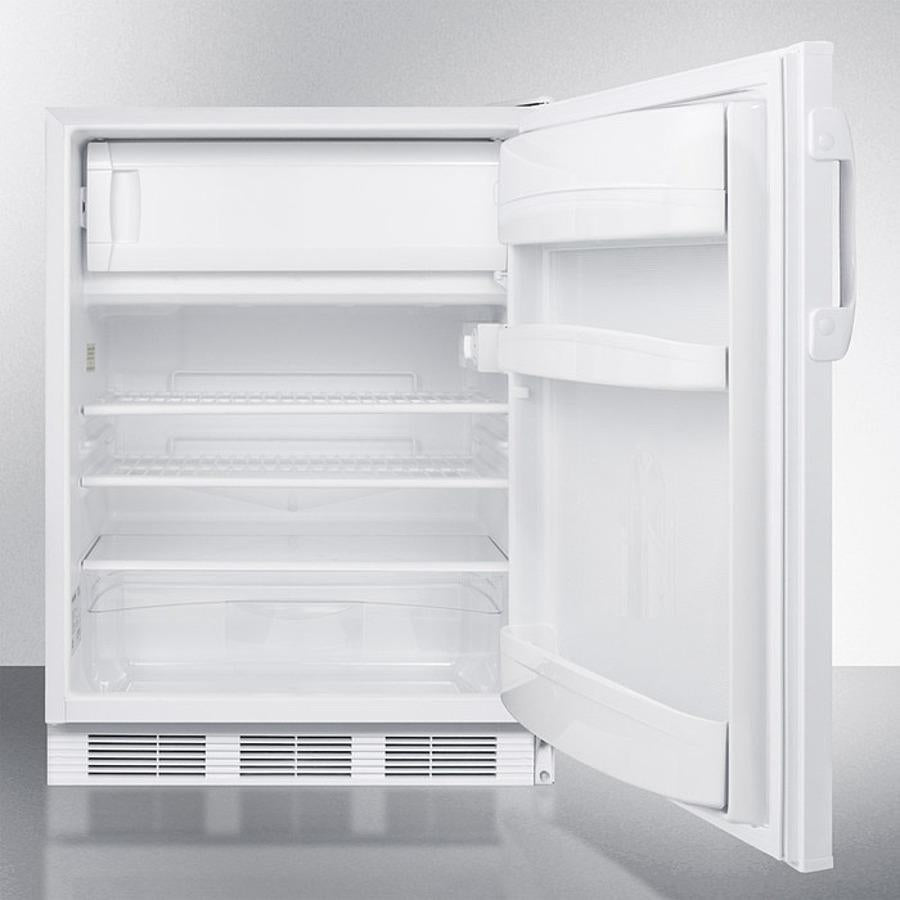

Inside, our unique dual evaporator system separately cools the refrigerator and freezer section to ensure proper storage temperature. Cycle defrost operation reduces user maintenance in the automatic defrost fresh food section, with static manual defrost operation in the freezer compartment. Door storage provides easy access for tall bottles and small condiments. Additional features include adjustable shelves, a clear crisper, and automatic interior lighting.

The CT66W has long proven itself to have one of the best temperature performance records in the industry. To see additional finish options on this unit, browse the full CT66 Series. For built-in under-counter applications, see the CT66WBI.

Note: This product is intended for a wide variety of basic storage applications. Storage of high-value vaccines, life science materials, and medical/clinical biologicals require a product offering tighter temperature control and/or alarms, monitoring, and backup.

Features

• Slim counter height dimensions: Popular 24" footprint offers generous storage capacity in a slim fit
• Dual evaporator: Our unique and efficient design separately cools the refrigerator while maintaining a lower temperature in the freezer compartment by utilizing two evaporators
• Cycle defrost: This system utilizes user-friendly automatic defrost operation in the fresh food section and efficient manual defrost operation in the freezer compartment
• Adjustable thermostat: Dial thermostat located inside for easy temperature management
• Interior light: Automatically illuminates when you open the door
• Adjustable shelves: Rearrange your refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up
• Crisper: Get the longest life and best taste out of produce by storing it in a convenient slide drawer
• Door storage: Store tall bottles and condiments right on the door for easy access
• Reversible door: User-reversible door swing for added flexibility
• Fully finished cabinet: Allows this unit to be used freestanding
• 100% CFC free: Environmentally friendly design without ozone-damaging chemicals
• CARB Compliant: Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Specifications

Overview

• Height of Cabinet: 33.25" (84 cm)
• Width: 23.63" (60 cm)
• Depth: 23.5" (60 cm)
• Depth with door at 90°: 45.13" (115 cm)
• Capacity: 5.1 cu.ft. (144 L)
• Defrost Type: Cycle
• Door: White
• Cabinet: White
• US Electrical Safety: UL
• Canadian Electrical Safety: ULC
• Amps: 1.2
• Voltage/Frequency: 115 V AC/60 Hz
• Weight: 100.0 lbs. (45 kg)
• Shipping Weight: 105.0 lbs. (48 kg)
• Parts & Labor Warranty: 1 Year
• Compressor Warranty: 5 Years
• UPC: 761101068749

Refrigerator-Freezer

• Door Swing: RHD
• Reversible: Yes
• Adjustable Shelves: Yes
• Crisper Qty: 1
• Crisper Finish: Transparent
• Crisper Cover: Glass
• Interior Light: Yes
• Refrigerator - Interior Height: 19.5" (50 cm)
• Refrigerator - Interior Width: 20.5" (52 cm)
• Refrigerator - Interior Depth: 17.0" (43 cm)
• Refrigerator - Shelf Type: Wire
• Refrigerator - Shelf Qty: 2
• Refrigerator - Full Door Shelves: 3
• Freezer - Interior Height: 5.0" (13 cm)
• Freezer - Interior Width: 19.0" (48 cm)
• Freezer - Interior Depth: 11.5" (29 cm)
• Thermostat Type: Dial
• Refrigerant Type: R600a
• Refrigerant Amount: 0.92 oz.
• Level Legs: 2
• Compressor Step Height: 7.0" (18 cm)
• Compressor Step Width: 20.5" (52 cm)
• Compressor Step Depth: 5.0" (13 cm)

Available Upgrades

Exterior

• DL2B: Factory installed NIST calibrated digital data logger (DDL)
• CAS3 3" casters
• TT: Installed thermometer
• PH: Probe Hole
• Legs to raise unit height
• CAS6 6" casters
• Alarm
• SS Hinges
• SCD: Self-closing door
• ODA: Open door alarm
• LHD: Left hand door swing
• Latch for door
• SSK
• HG: Hospital grade cord

Lock

• L-Installed Lock
• KEYPAD
• AC Keypad

Interior

• FCGP: Internal fan with gel packs
• FC: Internal Fan

Handle

• TBC Copper Towel Bar Handle
• CP Full-Length Copper Pipe Handle

Door

• STO: Step-To-Open Door Pedal

Manufacturer Resources

• Brochure w/ Drawings
• Technical Drawing (.dwg)
• Use and Care
