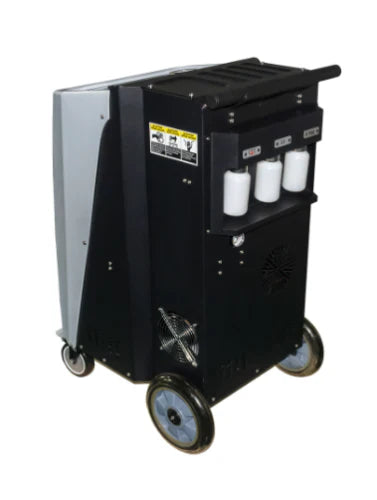

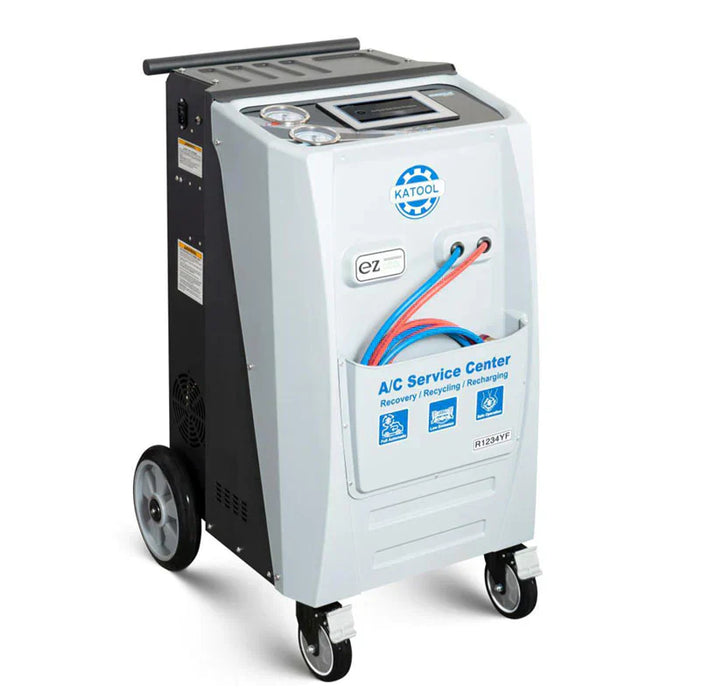

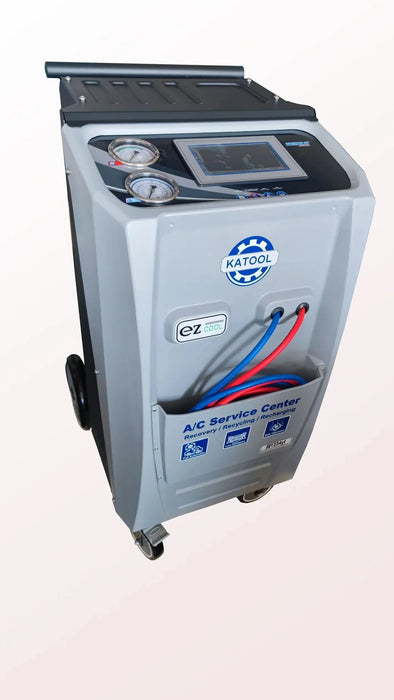

Katool R-1234YF Fully Automatic Recovery, Recycle & Recharge DUAL AC2100 Machine

Katool R-1234YF AC2100 Dual AC Machine | Fully Automatic Recovery, Recycle & Recharge for Automotive HVAC

Maximize your shop's efficiency with the Katool R-1234YF Fully Automatic Dual AC2100 Machine, a cutting-edge refrigerant recovery, recycling, and recharging system engineered for R-1234YF automotive HVAC systems. This powerful AC machine is designed for quick recovery (95% in under 30 minutes) and precise recharging with 0.5 oz accuracy, making it ideal for servicing domestic, foreign, electric, and hybrid vehicles.

Equipped with a high-resolution 7-inch touchscreen display, this user-friendly unit streamlines operation and minimizes training time. Built for performance, it includes a built-in printer, vacuum test, optional heating belt, SD database compatibility, and a robust fan and condenser system for reliable, long-term use.

Key Features:

• Fast Recovery Rate: Recovers up to 95% refrigerant in under 30 minutes.

• High Charging Accuracy: Advanced loadcell technology ensures 0.5 oz (15 g) precision.

• Versatile Vehicle Compatibility: Compatible with R-1234YF systems in gas, electric, and hybrid vehicles.

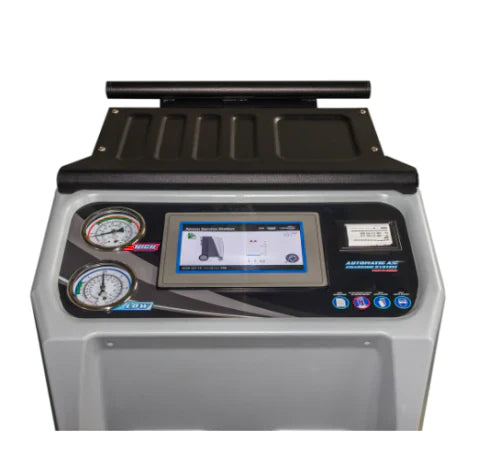

• Smart User Interface: 7” HQ touchscreen for intuitive operation.

• Comprehensive Support Tools: Built-in printer, SD database, optional heating belt, vacuum testing, and more.

Technical Specifications:

• Refrigerant: R-1234YF

• Voltage: 110V AC, 60 Hz

• Recovery Rate: 95% minimum in less than 30 minutes

• Charge Accuracy: ±0.5 oz (15 g)

• Max Pressure: 18 bar

• Vacuum Pump: Dual-stage, 3.6 CFM (120L/min)

• Compressor: 1/3 hp hermetically sealed

• Display: 7” HQ touchscreen

• Tank Capacity: 0.5 cubic feet (14.3L)

• Oil Bottle: 250 mL

• Weight: 240 lbs (110 kg)

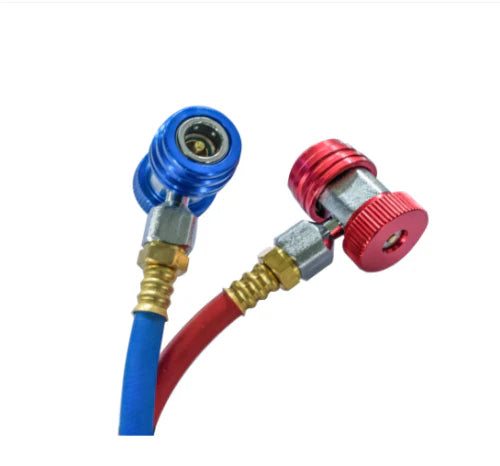

• Hose Length: 9.8 ft (3m), SAE J2788 compliant

• Dimensions: 22” x 28” x 41”

What’s Included:

• Built-in printer

• SD database support

• Optional heating belt

• Vacuum testing system

• Integrated fan and condenser

Warranty: Includes a 1-year full parts warranty with an optional 2-year extended protection plan. Coverage includes power units, motors, cylinders, electronics, and more. Replacement parts and shipping are provided at no additional cost. Labor is not included.

Ideal for: Auto repair shops, fleet maintenance facilities, EV service centers, mobile AC technicians, and professionals working with R-1234YF refrigerant systems.

Download Manual: [PDF Available]
