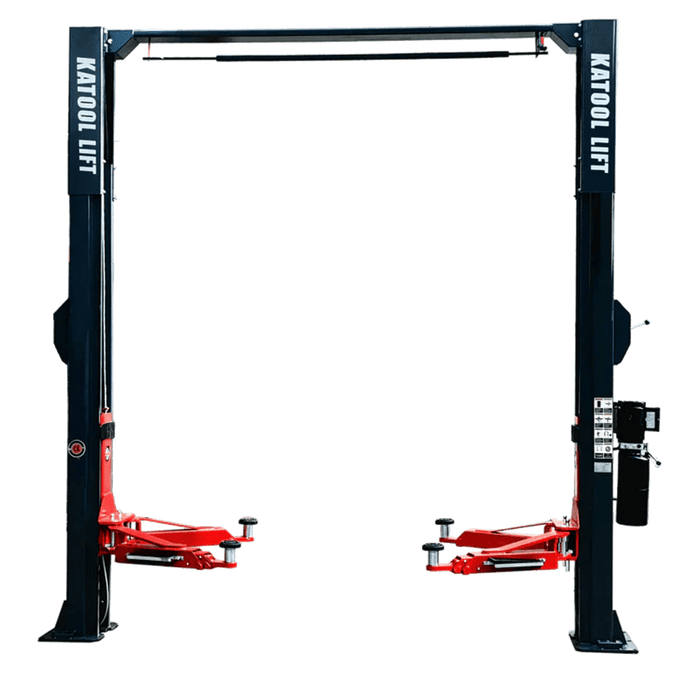

Katool KT-AS110D Two Post Asymmetrical Vehicle Lift 11,000lbs Single Point Lock Release

Katool KT-AS110D Two Post Asymmetrical Vehicle Lift – 11,000 lbs Capacity

The Katool KT-AS110D Two Post Asymmetrical Vehicle Lift is a highly versatile and durable lifting solution, engineered for heavy-duty applications with an impressive 11,000 lbs (4,990 kg) lifting capacity. CE approved and certified, it meets strict 115% dynamic loading capacity and 150% static loading capacity standards, ensuring superior performance and safety in busy workshops and garages.

This lift is equipped with asymmetric arms and direct drive cylinders, offering excellent versatility for handling a wide range of vehicle types. The Single Point Lock Release ensures smooth, secure, and controlled lifting. Additional safety features include rubber pad door opening protection, an overhead safety shutoff bar, and feet-protection safety guardrails, complete with an integrated toolbox for added convenience.

The high-quality hydraulic system guarantees reliable lifting performance, and the lift is available with 220V/60HZ/1PH or optional 110V/60HZ/1PH power configurations.

Concrete Requirements:
To ensure safe operation, it is critical that the installation surface has a minimum concrete thickness of 5.9 inches (150 mm) with a 3,000 PSI rating. Failure to meet these requirements could result in severe injury or equipment failure. It is the customer’s responsibility to confirm these specifications before purchasing or installing the lift.

Key Features:

• 11,000 lbs Lifting Capacity: Handles a wide range of vehicles with ease, perfect for high-demand workshops.

• CE Approved & Certified: Meets rigorous 115% dynamic and 150% static loading capacity standards.

• Single Point Lock Release: Provides easy, secure lifting with a controlled release mechanism.

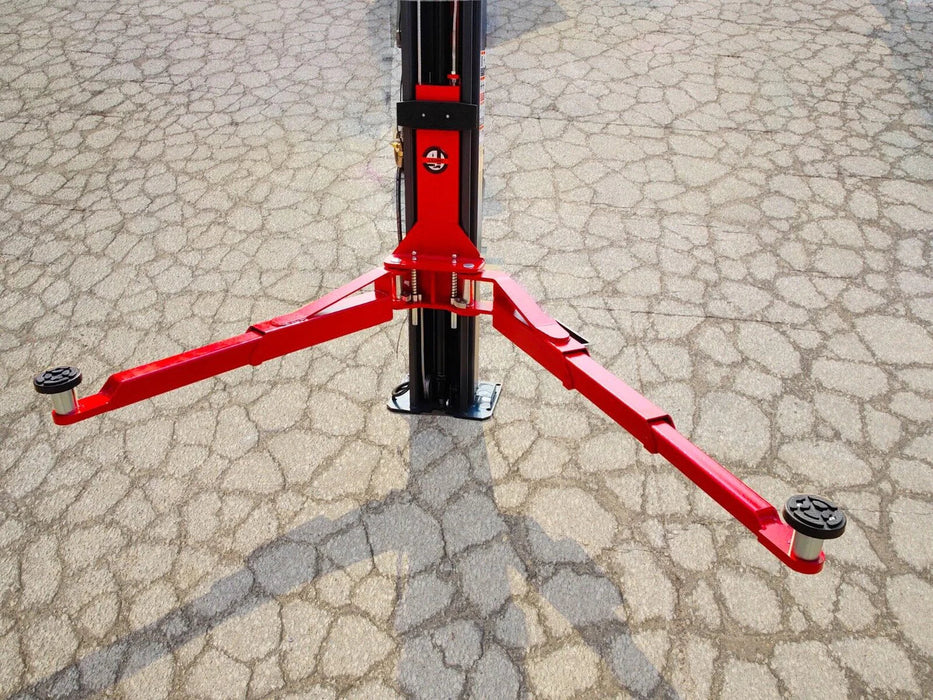

• Asymmetric Arms: Offers greater versatility, accommodating various vehicle types and sizes.

• Direct Drive Cylinders: Ensures smooth, reliable, and efficient lifting operations.

• Rubber Pad Door Opening Protection: Prevents damage to vehicles during lifting.

• Adjustable Extended Support Adaptor Sets (3.94" to 6"): Provides compatibility with different vehicle sizes and types.

• Overhead Safety Shutoff Bar: Adds an extra layer of safety by cutting power during emergencies.

• Feet-Protection Safety Guardrails with Toolbox: Enhances safety and convenience during lifting.

• High-Quality Hydraulic System: Available with 220V/60HZ/1PH or 110V/60HZ/1PH options for flexible power needs.

Specifications:

Warranty:

1-Year Limited Warranty:
Katool provides a 12-month warranty covering all parts and defects, ensuring your lift is always operating at peak performance.

3-Year Warranty on Structural Components:
Vehicle lifts come with an additional three-year (36 months) warranty on structural components, providing peace of mind for your investment.

Optional 2-Year Extended Warranty Plan:
Extend your coverage with a 2-year extended warranty plan, available for purchase to further protect your investment.

Warranty Includes:

• Coverage for cylinders, power units, motors, electronics, and other parts.

• Structural Components of the vehicle lift are covered for three years.

Warranty Conditions:

• Claims must fall within the warranty period and are non-transferable.

• Replacement parts are provided free of charge, including shipping.

• Labor costs are not included in the warranty.

• Disassembly of the equipment prior to warranty approval is not allowed.

• All claims are subject to approval by the warranty/service department, with supporting documentation (photos/videos) required.

Additional Resources:

For more detailed instructions, safety guidelines, and operational procedures, download the Katool KT-AS110D User Manual:

• Download User Manual (PDF)

The Katool KT-AS110D Two Post Asymmetrical Vehicle Lift is a highly dependable lifting solution for garages and workshops, offering an 11,000 lbs lifting capacity, premium safety features, and a versatile hydraulic system. Whether you're handling passenger vehicles or light trucks, this lift is designed to meet the demands of a busy shop environment.
